Understanding Curtain Walls: Definition Types and Applications

Curtain walls have become a defining feature of modern architecture, shaping the look and function of many buildings worldwide. These exterior walls do more than just enclose a structure; they influence energy efficiency, natural lighting, and aesthetic appeal. Understanding what curtain walls are, the different types available, and their practical uses can help architects, builders, and property owners make informed decisions for their projects.

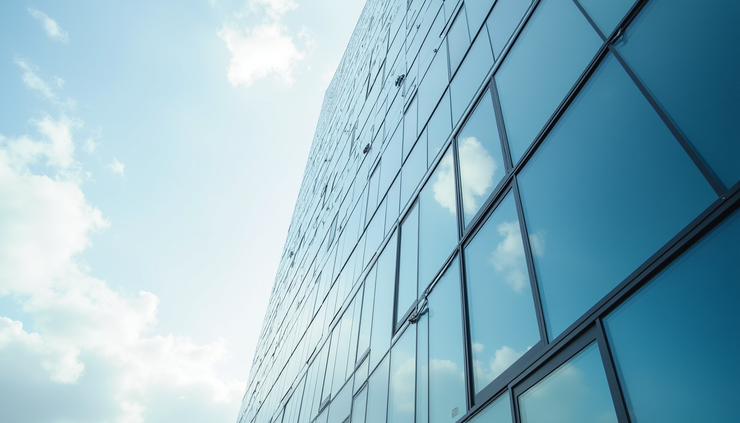

Glass curtain wall on a skyscraper reflecting clouds

What Is a Curtain Wall?

A curtain wall is an outer covering of a building that is non-structural. Unlike traditional walls, it does not carry any load from the building other than its own weight. Instead, it hangs like a curtain from the building’s frame. This design allows curtain walls to be lightweight and flexible, which is ideal for tall buildings and complex architectural designs.

The main purpose of a curtain wall is to protect the interior from weather elements such as rain, wind, and temperature changes while allowing natural light to enter. Curtain walls also contribute to the building’s insulation and can improve energy efficiency when designed with the right materials.

Types of Curtain Walls

Curtain walls come in several types, each with unique features and suited for different building needs. Here are the most common types:

1. Stick System Curtain Walls

The stick system is one of the oldest and most widely used curtain wall types. It involves assembling the frame piece by piece on-site. Vertical mullions and horizontal rails are installed separately, and glass or panels are fitted afterward.

Advantages:

• Flexibility in design and installation

• Easier to transport components to the site

• Cost-effective for smaller projects




Disadvantages:

• Longer installation time due to on-site assembly

• More joints, which can increase the risk of leaks if not properly sealed




2. Unitized Curtain Walls

Unitized curtain walls are pre-assembled in a factory as large panels, which include the frame and glazing. These panels are then transported to the construction site and installed as complete units.

Advantages:

• Faster installation on-site

• Higher quality control due to factory assembly

• Better performance in terms of air and water tightness




Disadvantages:

• Higher initial cost due to factory fabrication

• Transportation logistics can be challenging for large panels




3. Structural Glazing Curtain Walls

Structural glazing curtain walls use a silicone sealant to attach glass panels directly to the building frame without visible metal framing on the exterior. This creates a smooth, uninterrupted glass surface.

Advantages:

• Sleek, modern appearance with minimal visible framing

• Allows for large glass panels and more natural light

• Good weather resistance when properly installed




Disadvantages:

• Requires skilled installation and maintenance

• Silicone joints may degrade over time and need replacement




4. Double-Skin Curtain Walls

Double-skin curtain walls consist of two layers of glass separated by an air cavity. This design improves thermal insulation and soundproofing.

Advantages:

• Enhanced energy efficiency by reducing heat loss and gain

• Improved acoustic insulation

• Can incorporate natural ventilation within the cavity




Disadvantages:

• More complex and expensive to design and build

• Requires careful maintenance to avoid condensation issues




Applications of Curtain Walls

Curtain walls are versatile and used in various types of buildings, from commercial skyscrapers to residential complexes. Here are some common applications:

Commercial Buildings

In office towers and shopping centers, curtain walls provide an attractive exterior that maximizes daylight and offers panoramic views. The ability to customize glass types and finishes helps control solar heat gain and glare, improving occupant comfort.

Institutional Buildings

Hospitals, universities, and government buildings use curtain walls to create welcoming, light-filled spaces. The flexibility of curtain wall systems allows for creative architectural designs that can symbolize transparency and openness.

Residential Buildings

High-rise apartments and condominiums benefit from curtain walls by offering residents better views and natural light. Double-skin curtain walls are particularly useful in residential buildings located in noisy or cold climates.

Industrial Facilities

Some industrial buildings use curtain walls to improve natural lighting in workspaces, reducing the need for artificial lighting and lowering energy costs.

Double-skin curtain wall with visible air gap between glass panels

Choosing the Right Curtain Wall

Selecting the appropriate curtain wall depends on several factors:

• Building height and design: Taller buildings often benefit from unitized systems for faster installation.

• Climate: Double-skin curtain walls work well in extreme climates for better insulation.

• Budget: Stick systems offer cost savings but require more time on-site.

• Aesthetic goals: Structural glazing provides a sleek, modern look with minimal framing.

• Maintenance: Consider the ease of cleaning and repairing the curtain wall over time.




Final Thoughts

Curtain walls play a crucial role in modern construction by combining function and style. Knowing the different types and their applications helps ensure the right choice for each project’s needs. Whether aiming for energy efficiency, aesthetic appeal, or structural flexibility, curtain walls offer solutions that enhance building performance and occupant experience.
